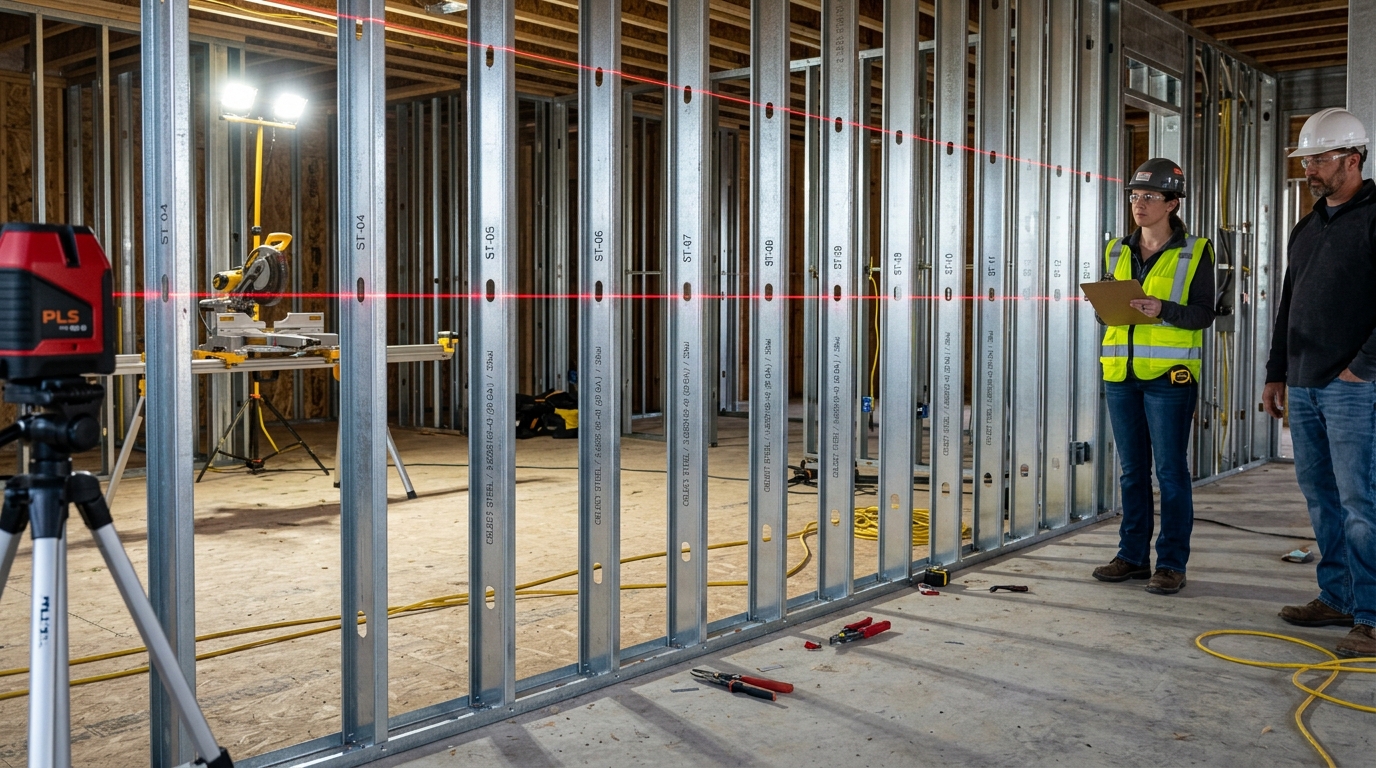

Wood Shrinkage vs. LGSF Stability: Why Walls Drop 3/4 Inch and How Steel Eliminates Drywall Cracks

Part of the Wood vs. LGSF Physics Series

The Moisture Trap: Why Green and Kiln-Dried Lumber Drops

Every homeowner and residential developer in Southern California has seen the symptoms: six to twelve months after moving into a newly built home, fine hairline fractures appear above door headers, diagonal tears zig-zag across ceiling drywall joints, and upstairs bedroom doors begin rubbing against their jambs. The traditional framing contractor usually blames 'normal house settling.' In reality, this is not soil settling at all—it is the direct physical consequence of cellular moisture evaporation in dimensional lumber.

When softwood timber (Douglas Fir or Spruce-Pine-Fir) is harvested, living sapwood contains upwards of 50% to 100% moisture content (MC). Commercial lumber mills kiln-dry framing studs to the 'KD19' standard, which simply guarantees that the wood contains 19% or less moisture when shipped. However, when installed in the dry, climate-controlled environments of Los Angeles, Burbank, or the Inland Empire, indoor air conditioning and heating drive the lumber's Equilibrium Moisture Content (EMC) down to between 6% and 9%.

The Physics of Anisotropic Cross-Grain Shrinkage

Wood is an anisotropic material—its cellular tracheids cause it to react differently along its three primary geometric axes. While longitudinal shrinkage along the length of a stud is minor (~0.1% to 0.2%), cross-grain shrinkage is catastrophic:

• Radial Shrinkage (perpendicular to growth rings): 3% to 5% shrinkage.
• Tangential Shrinkage (parallel to growth rings): 6% to 10% shrinkage.
• Volumetric Shrinkage: Up to 12% to 15% total volume loss from green to oven-dry.

In standard platform framing, vertical loads rest on horizontal cross-grain lumber members. Consider a typical two-story residence:

• Two 2x4 sill and bottom plates on the foundation: 3.0 inches.
• Four 2x4 top plates across two levels: 6.0 inches.
• Two levels of 2x10 or 2x12 floor joists / rim boards: 18.5 to 22.5 inches.
• Total Cross-Grain Thickness: 27.5 to 31.5 inches of horizontal lumber.

When those 30 inches of wood lose 10% moisture and shrink tangentially by 5% to 6%, the cumulative vertical drop of the second-story floor and ceiling is 1/2" to 3/4" (12.7 mm to 19 mm). Gypsum drywall boards, copper and PEX plumbing lines, and rigid tile backer boards do not shrink. As the wood frame contracts downward, fasteners are sheared, drywall screws punch straight through paper facings ('nail pops'), and vertical plumbing stacks experience damaging shear stresses.

How LGSF Achieves 0.00% Moisture Shrinkage

Light Gauge Steel Framing (LGSF / Cold-Formed Steel CFS) is an inorganic, crystalline alloy composed of iron and carbon protected by a hot-dip metallic zinc coating. Steel does not possess cellular tubules and absorbs zero water vapor.

From the moment a SteelFrameBuilds pre-cut C-stud is roll-formed in our precision factory to 50 years after construction, its moisture-related dimensional shrinkage is identically 0.00%. The building never drops, wall heights remain fixed to the exact 1/16-inch BIM specification, and the expensive cycle of 1-year builder warranty callbacks for drywall repairs, re-caulking, and door trimming is 100% eliminated.

Thermal Coefficient Comparison: Steel vs. Wood

Critics of steel framing often raise the question of thermal expansion. Let's look at the mathematical reality. The linear coefficient of thermal expansion for structural cold-formed steel is approximately:

α = 12 × 10^-6 m/(m·°C) (6.7 × 10^-6 in/(in·°F))

In a residential interior experiencing an extreme 50°F seasonal temperature variation, a 20-foot (240-inch) continuous steel wall expands or contracts by only 0.08 inches (~1/12 of an inch). In standard construction, this minuscule movement is easily absorbed by deflection tracks and slotted clip connectors. More importantly, unlike wood shrinkage—which is permanent, irreversible, and non-uniform—thermal movement in steel is completely elastic and predictable.
