The Structural Physics of Ground Motion: Newton's Law on Fault Lines
Southern California is crisscrossed by hundreds of active fault lines, including the San Andreas, Newport-Inglewood, Hollywood, and Sierra Madre faults. Consequently, the California Building Code (CBC 2026) and the Los Angeles Department of Building and Safety (LADBS) classify the region under Seismic Design Categories D, E, and F—the highest hazard categories in the United States.
When an earthquake strikes, the ground accelerates rapidly beneath the foundation. The building structure above resists this acceleration due to inertia. The total lateral seismic base shear force ($V$) transmitted through the foundation is calculated using the fundamental structural engineering equation defined in ASCE 7-22 Section 12.8:
V = Cs × W
Where:
- V: Total seismic lateral base shear force (pounds or kips).
- Cs: Seismic response coefficient (determined by site soil class, spectral acceleration parameters $S_{DS}$, and building fundamental period $T$).
- W: Effective seismic dead weight of the structure (including framing, floors, roofs, and permanent fixtures).
The Mass Penalty: Why Heavy Wood Structures Fail
Notice the direct proportional relationship: if you double the weight of the structure ($W$), you double the destructive lateral shearing force ($V$) ripping through your walls, holdowns, and anchor bolts.
Dimensional lumber is inherently bulky and heavy. Green or kiln-dried Douglas Fir has a density of approximately 32 to 38 pounds per cubic foot. In multi-story residences and multi-family infill developments, heavy timber frames accumulate immense seismic mass. During rapid cyclic ground acceleration, this mass generates massive inertial moments, placing extreme tension on anchor bolts, rocking wall footings, and tearing common friction nails out of soft wood stud end-grain.
The Cold-Formed Steel Advantage: High Strength-to-Weight Ratio
Structural Cold-Formed Steel delivers an unmatched strength-to-weight ratio. LGSF structural C-studs and open-web floor joists are manufactured from high-yield coil steel with yield strengths ($F_y$) of 33,000 to 50,000 PSI (33 to 50 ksi) and tensile strengths up to 65 ksi.
Because of this immense material efficiency, an engineered LGSF structural frame is 30% to 50% lighter than an equivalent dimensional lumber frame designed to carry identical floor and roof gravity loads:
- Lower Seismic Base Shear ($V$): Lighter dead load directly cuts base shear demand by up to 30%, decreasing the overturning forces acting on foundation footings.
- Smaller Foundation Requirements: Reduced dead load and lower seismic shear often allow geotechnical engineers to specify smaller concrete grade beams, shallower spread footings, and fewer expensive helical piers on hillside lots.

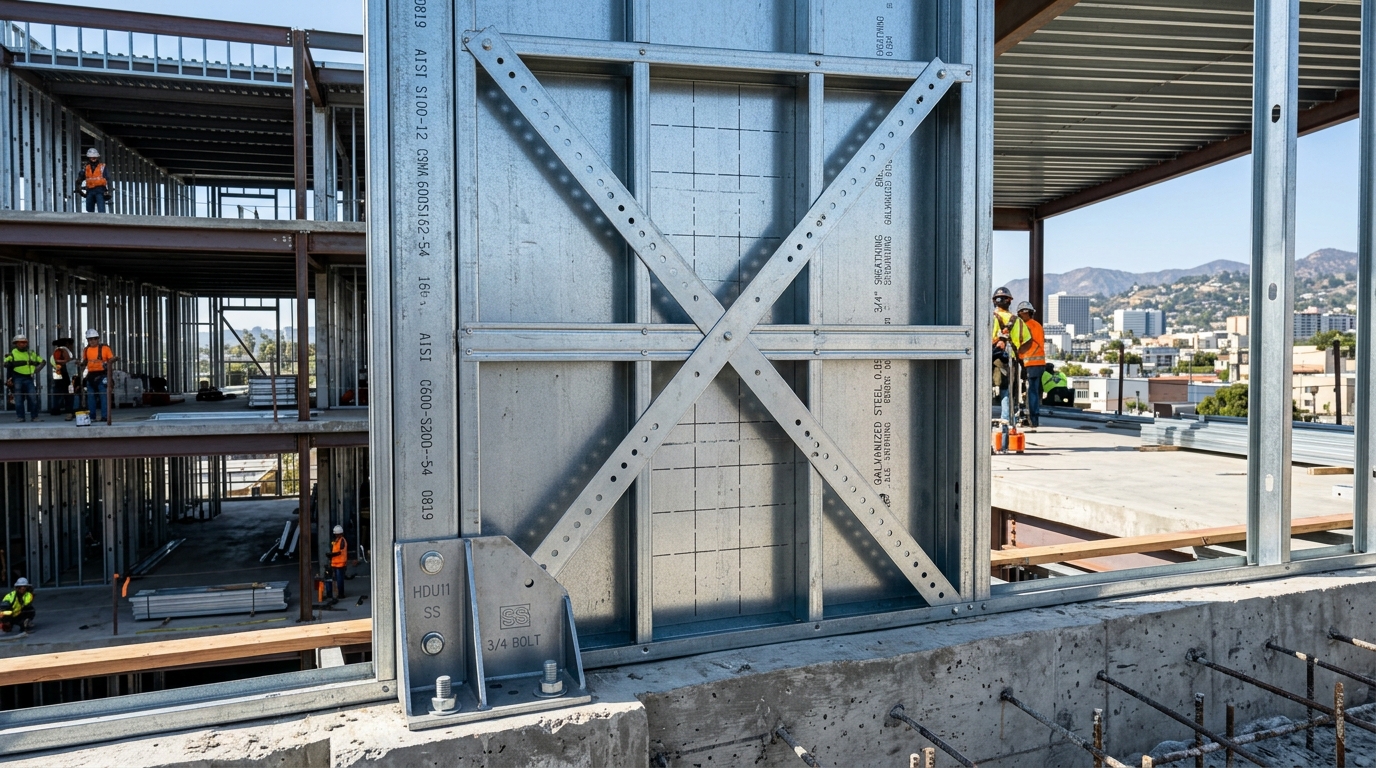

- Mechanical Fastener Integrity: LGSF joints rely on hardened, fine-threaded self-drilling hex screws and heavy-gauge Simpson Strong-Tie holdown brackets bolted steel-to-steel. Unlike wood nails—which loosen and pull out during cyclic seismic shaking—bolted steel connections maintain clamping tension under severe earthquake reversal cycles.
Frequently Asked Questions
Q: How does building weight affect earthquake damage in California?
A: According to Newton's Second Law (F = m * a) and building code seismic formulas (V = Cs * W), seismic lateral shear force is directly proportional to the building's dead load weight (W). Heavier buildings generate vastly higher inertia forces during ground acceleration, stressing foundations and framing connections.
Q: Why is Light Gauge Steel superior in high seismic zones D through F?
A: LGSF structures weigh 30% to 50% less than equivalent wood buildings, substantially reducing total base shear (V). Combined with steel's high ductility and 50 ksi tensile yield strength, steel framing absorbs and dissipates ground motion without brittle joint fracturing.
Q: Are LGSF frame kits compliant with LADBS seismic standards?
A: Yes. All SteelFrameBuilds engineering packages are designed strictly in accordance with the California Building Code (CBC 2026), ASCE 7-22, and LADBS requirements, featuring Simpson Strong-Tie holdowns, anchor bolts, and engineered strap shear walls.
Q: Does SteelFrameBuilds provide seismic engineering across Southern California?
A: Yes. We provide complete structural engineering, stamped calculations, and LGSF fabrication for seismic retrofit, ADU, and new construction projects within 100 miles of Los Angeles.
