Part of the Wood vs. LGSF Physics Series
1.5× – 2.0×
Wood Long-Term Creep Factor
Zero
CFS Ambient Creep Deflection
29,500 ksi
Steel Modulus of Elasticity
40+ Feet
LGSF Clear-Span Capacity

Why Do 20-Year-Old Rooflines and Ceilings Sag?

Look closely at older wood-framed houses throughout Southern California: roof ridges that bow downward in the middle like an old swayback horse, second-story floors that bounce and dip toward the center of rooms, and wide sliding patio door headers that pinch down onto glass door frames. These structural deformations are not caused by storm overloads—they are caused by a relentless physical phenomenon known as viscoelastic mechanical creep.

When an architect designs wide open-concept floor plans, expansive living rooms, or flat residential roof decks, understanding the fundamental difference between wood creep and steel elasticity is the difference between a pristine lifetime structure and a sagging maintenance headache.

The Physics of Viscoelasticity in Wood Cellulose

Wood is not a purely elastic solid; it is a viscoelastic polymeric composite. Its primary structural components—cellulose microfibrils embedded in an amorphous matrix of hemicellulose and lignin—exhibit both elastic solid and viscous fluid behaviors.

When a constant dead load (such as concrete roof tiles, solar panel arrays, heavy HVAC air handlers, or second-story furniture) is applied to a wood beam:

  1. Instantaneous Elastic Deflection (δe): The beam bends immediately in response to the load according to classic beam theory (δ = 5wL4 / 384EI).
  2. Time-Dependent Creep Deflection (δc): Over months and years under continuous sustained gravity load, molecular hydrogen bonds between cellulose chains continuously break, slide past one another, and reform in deformed positions. This deformation is permanent, non-recoverable, and plastic.

Because of this phenomenon, the National Design Specification (NDS) for Wood Construction mandates that structural engineers apply a long-term creep deflection multiplier of 1.5× to 2.0× to all dead load calculations for unseasoned or seasoned lumber. A wood floor joist that deflects an acceptable 1/4 inch on installation day will permanently sag by 1/2 to 5/8 inch over a decade of service.

Pure Elasticity: Hooke's Law in Cold-Formed Steel

Structural steel is an inorganic crystalline metal. At standard ambient temperatures (-40°F to 140°F), structural steel operates entirely within its linear elastic regime, strictly obeying Hooke's Law:

σ = E × ε

Where σ is stress, ε is strain, and E is the Modulus of Elasticity (29,500,000 PSI or 29,500 ksi). For comparison, Douglas Fir has an elastic modulus of only 1,600 ksi to 1,900 ksi—making structural steel over 15 times stiffer than dimensional timber.

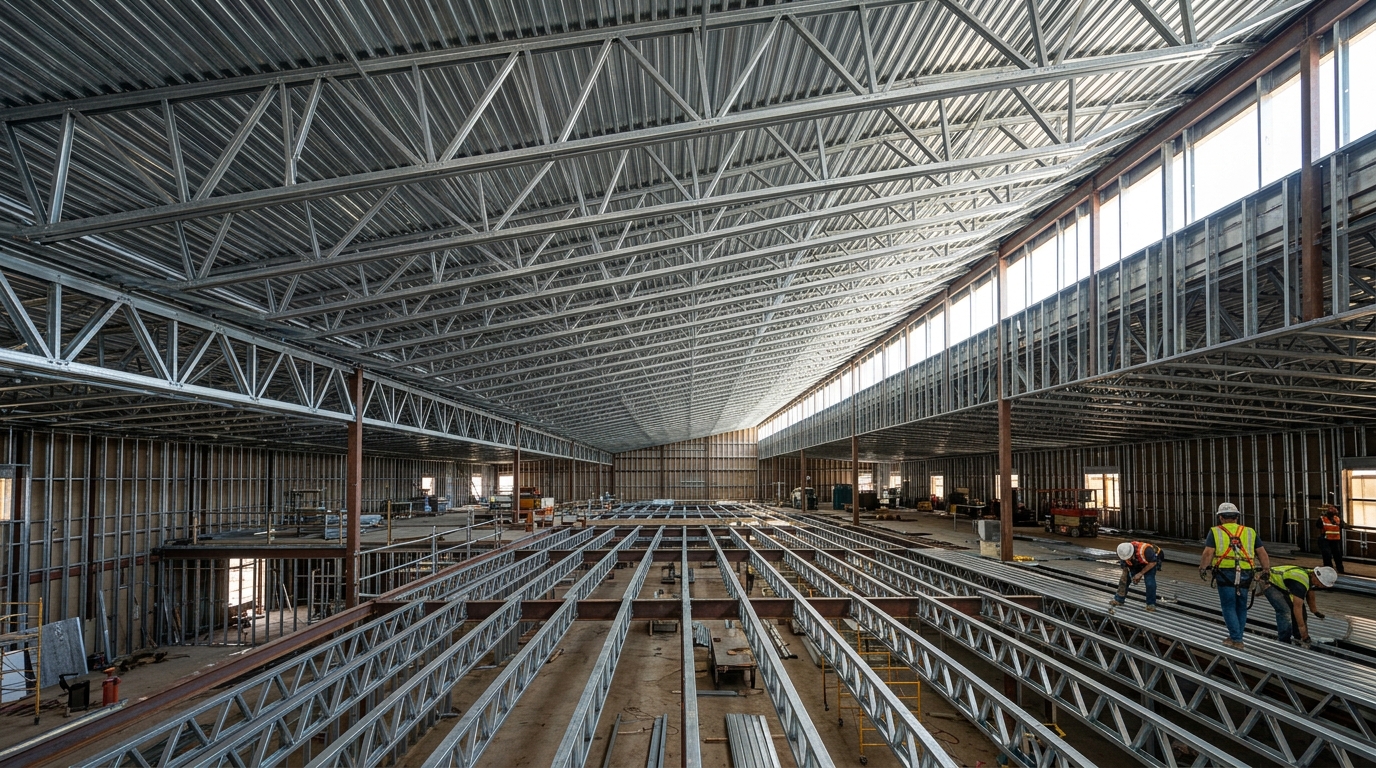

Within calculated structural design stresses below its yield point (Fy = 33 to 50 ksi), steel exhibits zero time-dependent mechanical creep. A SteelFrameBuilds cold-formed steel floor joist or roof truss under permanent dead load deflects only its calculated elastic deflection on day one and remains at that exact elevation 50 years later. Rooflines stay razor-straight, floor tiles never crack from mid-span joist sagging, and interior clear spans up to 40 to 60 feet remain stable indefinitely.

Frequently Asked Questions

Q: What is structural creep in wood construction?

A: Creep is the slow, continuous, time-dependent plastic deformation of a material subjected to constant sustained mechanical stress (such as roof tiles, ceiling drywall, and floor dead loads). Over years, wood fibers permanently stretch and slip, resulting in permanent beam sag.

Q: Why do building codes require creep multipliers for timber?

A: The National Design Specification (NDS) for Wood Construction mandates that structural engineers multiply instantaneous dead load deflection by a factor of 1.5 to 2.0 to account for long-term creep in timber beams and joists.

Q: Does cold-formed steel suffer from long-term deflection sag?

A: No. Below its structural yield point (33 to 50 ksi) and at ambient atmospheric temperatures, steel is a purely elastic material obeying Hooke's Law. Steel does not exhibit viscoelastic creep under standard design loads, maintaining its engineered camber indefinitely.

Q: Can SteelFrameBuilds engineer large clear-span floor and roof trusses?

A: Yes. SteelFrameBuilds engineers and fabricates cold-formed steel open-web trusses spanning 40 to 60+ feet without interior load-bearing support walls across Los Angeles and Southern California.
