Wood vs. LGSF Framing: The Structural Physics, Shrinkage Numbers & Why Steel Doesn't Fail

Material Physics & Engineering Reality

Bottom Line Up Front: In the first 12 to 24 months after a wood-framed house is built, the structural frame loses 10% to 13% of its internal moisture. That evaporative process causes cross-grain timber to shrink by up to 10% tangentially, dropping a standard two-story building by 1/2" to 3/4" (12–19 mm). This differential movement is the exact physical root cause of popped drywall screws, diagonal wall cracks, sticking interior doors, squeaking floorboards, and roofline sags.

By contrast, Light Gauge Steel Framing (LGSF / Cold-Formed Steel CFS) is an inorganic, isotropic crystalline material with 0.00% moisture shrinkage, zero biological decay, and a structural yield strength ranging from 33,000 to 50,000 PSI (33–50 ksi). Here is the unvarnished structural physics behind why traditional lumber behaves unpredictably on job sites—and how Cold-Formed Steel delivers engineered, lifetime millimeter precision.

1. Moisture Loss & Cross-Grain Shrinkage: Why Wood Walls Drop

Wood is an anisotropic, hygroscopic organic composite. Trees absorb water inside cell cavities (free water) and cell walls (bound water). When framing lumber (typically Spruce-Pine-Fir or Douglas Fir) is harvested and kiln-dried to "KD19" specification, it leaves the mill with a moisture content (MC) of approximately 19%.

However, when placed into an air-conditioned or heated home in Southern California (such as Los Angeles, Irvine, or Riverside), indoor relative humidity drops, driving the wood to its equilibrium moisture content of 6% to 9% MC.

As that 10% to 13% moisture evaporates, wood shrinks unevenly based on grain orientation:

• Longitudinal (along the grain): Negligible (~0.1% to 0.2%).
• Radial (across annual rings): ~3% to 5% shrinkage.
• Tangential (parallel to growth rings): ~6% to 10% shrinkage.

Now calculate the cumulative cross-grain wood in a standard two-story residential platform framing assembly: two 2x4 bottom plates (3.0"), four top plates (6.0"), and two rows of 2x10 or 2x12 floor joists (18.5" to 22.5"). That equals roughly 27.5 to 31.5 inches of horizontal cross-grain lumber under vertical compression.

When that horizontal wood shrinks by 4% to 6%, the vertical height of the framing shrinks by 0.50" to 0.75" (12.7 mm to 19 mm). Because interior plumbing stacks, electrical conduits, and gypsum drywall boards are rigid and do not shrink at the same rate, the shrinking wood frame literally tears drywall screws through paper facing and puts severe shearing strain on drain lines.

How LGSF Solves This: Cold-Formed Steel does not contain cellular water. Its dimensional moisture shrinkage coefficient is 0.00%. The only dimensional change steel experiences is thermal expansion (coefficient of approximately 12 × 10^-6 m/m·°C), which amounts to less than 1/32" across a 20-foot wall under extreme 50°F indoor temperature swings. A steel-framed wall built today will remain exactly the same height 50 years from now.

2. Crowning, Bowing & Twisting (The Distortion Matrix)

Because tree growth rings are circular and density varies between earlywood and latewood, drying stresses cause lumber to deform unpredictably. Framers encounter four major physical distortions:

1. Bow: Deviation along the flat face of the stud (often up to 1/2" or 13 mm over an 8-foot stud).
2. Crook: Curvature along the narrow edge of the lumber.
3. Cup: Cross-sectional curve across the wide face.
4. Twist: Rotational torque along the longitudinal axis (angles up to 3° to 7°).

On job sites, framing carpenters spend hundreds of man-hours "sighting" crowns, discarding warped sticks (cull rates of 10% to 18%), and kerf-cutting bowed studs to nail scab plates. When warped studs slip past inspection, drywalls become wavy, tile installations crack, and kitchen cabinet installers must waste entire days shimming base boxes.

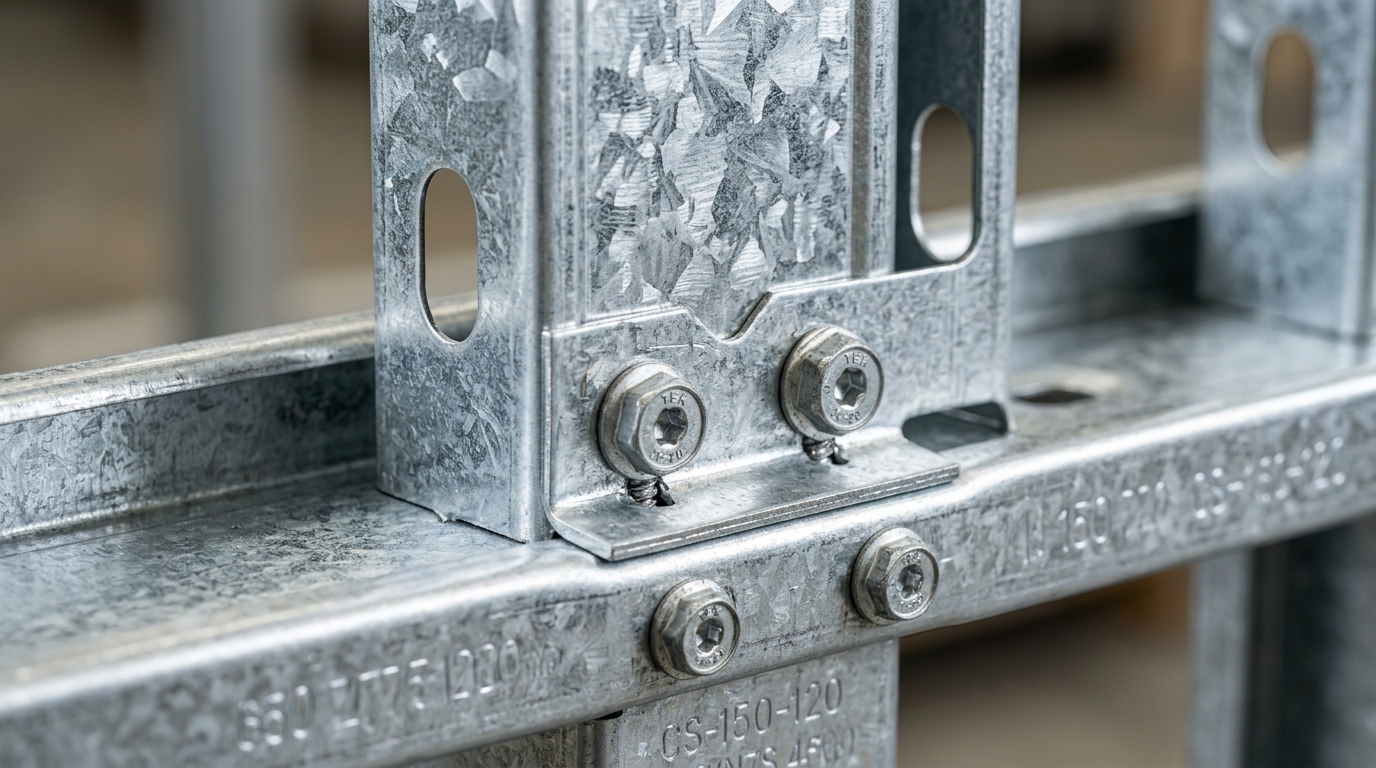

How LGSF Solves This: Steel studs are cold-roll-formed from high-tensile structural coil steel conforming strictly to AISI S100 and ASTM C955 standards. Studs feature precision return lips and engineered web punchouts manufactured to within ±1/16" (1.5 mm) tolerances. Every single stud is 100% straight, square, and true. Drywall lays flat with zero shimming, and corners form crisp 90.0° angles.

3. Fungal Decay, Moisture Thresholds & Dry Rot

Wood is biodegradable cellulose and lignin. Structural timber rot is caused by wood-decay fungi (such as Serpula lacrymans or brown rot) that secrete cellulase enzymes to dissolve the wood fiber matrix. Fungal spores require three conditions to trigger structural rot:

• Oxygen.
• Temperatures between 50°F and 90°F.
• Wood Moisture Content (MC) exceeding 19% to 20% (the Fiber Saturation Point).

A single hidden pinhole leak in a bathroom PEX fitting, condensation inside exterior wall cavities, or stucco micro-cracks will quickly push wood above the 20% MC threshold. Once decay begins, timber loses up to 75% of its structural compressive and bending strength long before the damage becomes visibly apparent from the outside.

How LGSF Solves This: Steel is entirely inorganic. It contains no cellulose, cannot be consumed by fungi, and will never develop dry rot. For moisture and coastal environments, all SteelFrameBuilds structural components feature hot-dip G90 galvanization (275 g/m² zinc). Even if water penetrates the building envelope, the steel does not swell, soften, or lose its structural load capacity.

4. Termites and Bio-Infiltration in California

According to the National Pest Management Association, subterranean, drywood, and Dampwood termites cause over $5 Billion in property damage across the United States each year—damage that is explicitly excluded from standard homeowner insurance policies. In California, subterranean termites nest in ground soil and consume framing from the foundation sill plate upwards.

Homeowners building with wood must invest thousands in chemical soil poisoning (termiticides), pressure-treated chemical sill plates (ACQ), and disruptive whole-home tenting fumigations every 7 to 10 years.

How LGSF Solves This: Cold-Formed Steel is 100% insect impervious. Termites, carpenter ants, and powderpost beetles cannot bite, tunnel through, or nest in steel. Building with steel completely eliminates the recurring expense of termite inspections, soil chemical barrier treatments, and structural remediation.

5. Strength-to-Weight Ratio & Seismic Inertia Forces

Southern California sits atop hundreds of active fault lines, placing our builds squarely in LADBS Seismic Design Categories D, E, and F. The seismic base shear force ($V$) exerted on a building during an earthquake is governed by the structural formula:

$$V = C_s \times W$$

Where $C_s$ is the seismic response coefficient and $W$ is the effective seismic weight (dead load) of the building. Because wood framing is bulky and heavy (Douglas Fir weighs ~32 to 38 lbs/cu.ft), it creates a much higher building dead load ($W$). Greater mass means higher lateral inertia forces shaking the building back and forth, putting extreme tension on anchor bolts and holdowns.

Cold-Formed Steel framing is 30% to 50% lighter than dimensional timber while offering an elastic modulus of $29,500\text{ ksi}$ ($203\text{ GPa}$) and yield strengths of $33\text{ ksi}$ to $50\text{ ksi}$ ($230\text{ to }345\text{ MPa}$). By reducing the dead weight ($W$), LGSF dramatically decreases seismic base shear, resulting in smaller foundation footings, lower overturning moments, and superior earthquake resilience.

6. Creep Deflection: Why Wood Roofs and Beams Sag Over Time

Wood is a viscoelastic material. Under sustained dead loads (such as heavy concrete roof tiles, solar panel arrays, or second-story furniture), wood fibers undergo continuous, irreversible plastic deformation known as mechanical creep. Structural engineering codes require engineers to apply a creep deflection multiplier of 1.5× to 2.0× to wood beams.

This is why 20-year-old wood homes frequently display sagging ridge beams, uneven second floors, and sticking sliding glass doors.

How LGSF Solves This: Within design stress limits below its yield point ($F_y$), structural steel is a purely elastic material obeying Hooke’s Law ($E = \sigma / \epsilon$). Steel does not suffer time-dependent creep at ambient temperatures. An engineered LGSF floor truss or roof rafter system maintains its calculated camber and deflection profile for decades without sagging.

Comprehensive Engineering Comparison: Wood vs. LGSF

Performance Metric	Dimensional Lumber (SPF / DF)	SteelFrameBuilds LGSF (CFS)
Moisture Shrinkage	6% to 10% tangential cross-grain (1/2" to 3/4" drop)	0.00% (Zero moisture shrinkage)
Dimensional Tolerance	±1/4" to ±1/2" (Bow, crown, twist)	±1/16" (1.5 mm) CNC factory precision
Tensile / Yield Strength	~800 to 1,500 PSI (Bending $F_b$)	33,000 to 50,000 PSI (33–50 ksi)
Biological Decay / Mold	Rots when Moisture Content > 20%	100% Inorganic (Zero rot or mold)
Termite Susceptibility	High (Requires ongoing fumigation/poison)	Impervious (Zero chemical treatments)
Fire Resistance (ASTM E119)	Combustible fuel source (Ignites at 400°F–500°F)	Class A Non-Combustible (Melts > 2,700°F)
Seismic Dead Load Weight	Heavy (~35 lbs/cu.ft) → Increases Base Shear	30%–50% Lighter → Decreases Base Shear
Long-Term Dead Load Creep	High (1.5× to 2.0× deflection over time)	Zero ambient creep deflection
Job Site Cull & Scrap Waste	10% to 18% discarded lumber and off-cuts	< 1% waste (Pre-cut CNC engineered kits)

How This Impacts Your Project Pro Forma and Build Speed

When you look beyond the raw board-foot lumber commodity price, the true cost of wood framing reveals itself in prolonged build cycles, waste disposal fees, framing cull costs, and expensive drywall and door callbacks. By switching to pre-engineered Light Gauge Steel Frame Kits, California developers and homeowners gain:

• 40% to 50% Faster On-Site Assembly: Panels arrive pre-punched, dimpled, and numbered for rapid bolting.
• Substantial Fire Insurance Savings: Up to 20% to 30% reduction in Builder's Risk and permanent property insurance premiums in California Wildland-Urban Interface (WUI) zones.
• Zero Warranty Callbacks: No nail pops, no warped door frames, no sagging ceiling drywall.

Engineered For California's Toughest Conditions

Whether you are building a backyard rental ADU, a high-end hillside custom residence, or a multi-family infill development, engineering your structure with Light Gauge Steel guarantees lifetime structural integrity.

Submit your architectural drawings to our engineering team today for a complimentary BIM feasibility review, value-engineering cost breakdown, or a firm frame kit bid.
